Sealpro offers boiler gauge glass in 3/4" and 5/8" widths in both standard and heavy wall thicknesses. We can cut glass to any desired length.

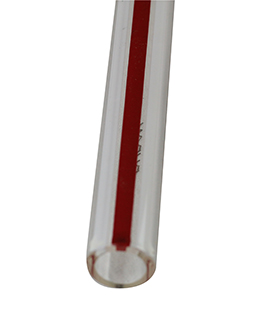

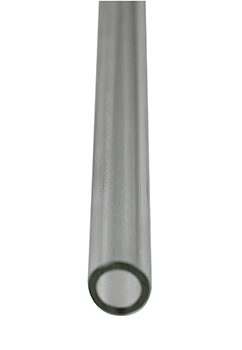

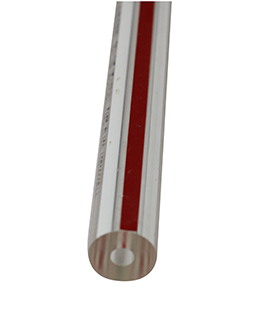

Clear Gauge Glass CL-xxxx	Red Line Gauge Glass RL-xxxx	Red Line Heavy Wall Gauge Glass HRL-xxxx

Gauge Glass Dimensions

CLEAR & RED LINE			RED LINE HEAVY WALL
O.D. +0", -1/32"	I.D. Nominal	Wall	O.D. +1/64", -3/64"	I.D. Nominal	Wall
5/8"	7/16"	7/32"±1/64"	5/8"	1/4"	3/16"±3/64", -0"
3/4"	17/32"	3/32"±1/64"	3/4"	5/16"	7/32"±1/16", -0"

All glass tube’s internal pressure exert a bending force on the tube and therefore, the longer the tube the higher the likelihood of breakage due to this bending. Also, where corrosive material such as steam is in the tube the wear on the tube further weakens its resistance to pressure. Red Line Heavy Wall is recommended for steam service.

Maximum recommended working pressure PSI for 5/8" O.D. and 3/4" O.D. GLASS AT 150°F

Length/Inches	Clear Glass	Red Line	Red Line Heavy Wall
Up to 12	400 psi	330 psi	540 psi
Up to 24	315	260	520
Up to 36	240	200	450
Up to 48	190	160	305
